PDB-code
| Kinase structure | |
| Kinase: | NEK2 |
| Family: | NEK |
| Group: | Other |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2117 |
| PDB: | 2W5H |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2008-12-23 |
| PubMed: | 19124027 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 2W5H | |||||
| 2W5H | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | out |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 61.5° (17.9Å) |
| G-rich loop rotation: | 82° |
| Quality Score: | 6 |
| Resolution: | 2.33 Å |
| Missing Residues: | 7 |
| Missing Atoms: | 12 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I2 I9 | Ligand No No | Protein Yes Yes | ||

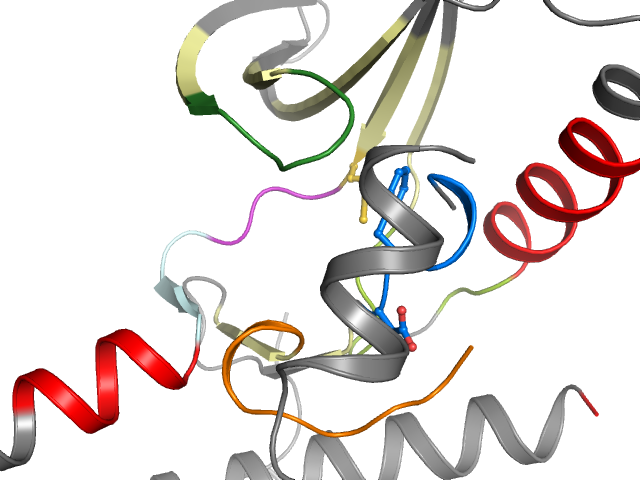

| Pocket alignment | |
| Uniprot sequence: | YTIGTGSYGRCQKLVWKELMLVSEVNLLRELKPNIVRYYDRYIVMEYCEGGDLASVITKSDGGHTVLHRDLKPANVFLLGDFGLA |
| Sequence structure: | YTIGTGSYGRCQKLVWKELMLVSEVNLLRELKPNIVRYYDRYIVMEYCEGGDLASVITKS_______HRDLKPANVFLLGDFGLA |
