PDB-code
| Kinase structure | |
| Kinase: | MAPK8 (JNK1) |
| Family: | MAPK |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1496 |
| PDB: | 3VUK |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-02-13 |
| PubMed: | 23020677 |
| Chain: | A |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 53.5° (15Å) |
| G-rich loop rotation: | 87° |
| Quality Score: | 8 |
| Resolution: | 2.95 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

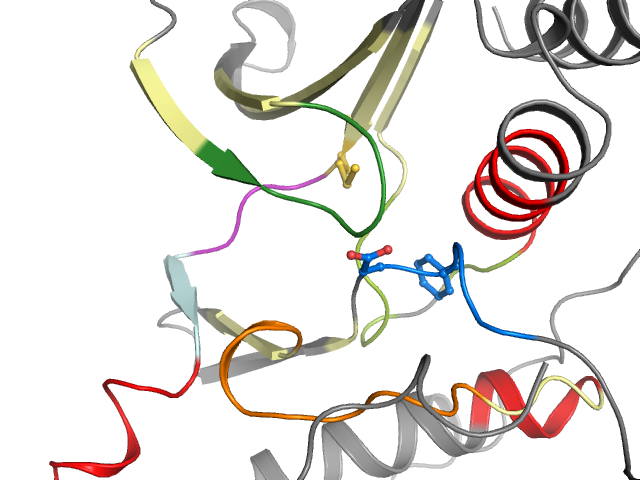

| Pocket alignment | |
| Uniprot sequence: | KPIGSGAQGIVCAVAIKKLRAYRELVLMKCVNKNIIGLLNVYIVMELMD-ANLCQVIQMHLHSAGIIHRDLKPSNIVVILDFGLA |
| Sequence structure: | KPIGSGAQGIVCAVAIKKLRAYRELVLMKVVNKNIIGLLNVYIVMELMD_ANLSQVIQMHLHSAGIIHRDLKPSNIVVILDFGLA |
