PDB-code
| Kinase structure | |
| Kinase: | MAPK8 (JNK1) |
| Family: | MAPK |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1496 |
| PDB: | 3VUD |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-02-13 |
| PubMed: | 23020677 |
| Chain: | A |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 51.7° (14.7Å) |
| G-rich loop rotation: | 79.1° |
| Quality Score: | 8 |
| Resolution: | 3.5 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

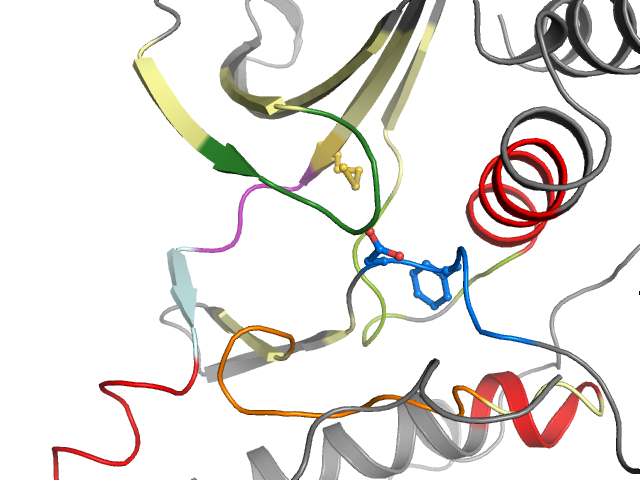

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I5 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | KPIGSGAQGIVCAVAIKKLRAYRELVLMKCVNKNIIGLLNVYIVMELMD-ANLCQVIQMHLHSAGIIHRDLKPSNIVVILDFGLA |
| Sequence structure: | KPIGSGAQGIVCAVAIKKLRAYRELVLMKCVNKNIIGLLNVYIVMELMD_ANLCQVIQMHLHSAGIIHRDLKPSNIVVILDFGLA |
