PDB-code
| Kinase structure | |
| Kinase: | FGFR2 |
| Family: | FGFR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1809 |
| PDB: | 4J98 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-08-07 |
| PubMed: | 23871672 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 4J98 | |||||
| 4J98 | Alternative model: | A | Chain: | A | |
| 4J98 | Alternative model: | A | Chain: | B | |
| 4J98 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 55.4° (16.6Å) |
| G-rich loop rotation: | 39.7° |
| Quality Score: | 9.6 |
| Resolution: | 2.31 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 4 |

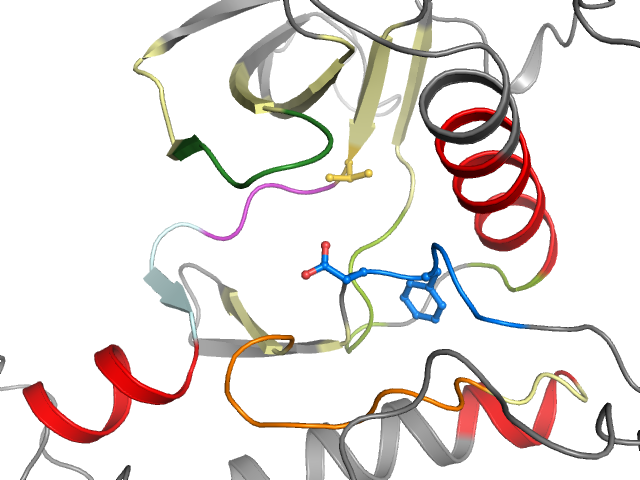

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I5 I6 | Ligand No No | Protein Yes No | ||
| Pocket alignment | |
| Uniprot sequence: | KPLGEGCFGQVVMVAVKMLDLVSEMEMMKMIGKNIINLLGAYVIVEYASKGNLREYLRAYLASQKCIHRDLAARNVLVIADFGLA |
| Sequence structure: | KPLGEGAFGQVVMVAVKMLDLVSEMEMMKMIGKNIINLLGAYVIVEYASKGNLREYLRAYLASQKCIHRDLAARNVLVIADFGLA |
