PDB-code
| Kinase structure | |
| Kinase: | MAPK14 (p38a) |
| Family: | MAPK |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1499 |
| PDB: | 2Y8O |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2012-02-22 |
| PubMed: | 23047924 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 2Y8O | |||||
| 2Y8O | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 66.3° (19.4Å) |
| G-rich loop rotation: | 41.1° |
| Quality Score: | 8 |
| Resolution: | 1.95 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I2 I3 I4 | Ligand No No No No | Protein Yes Yes Yes Yes | ||

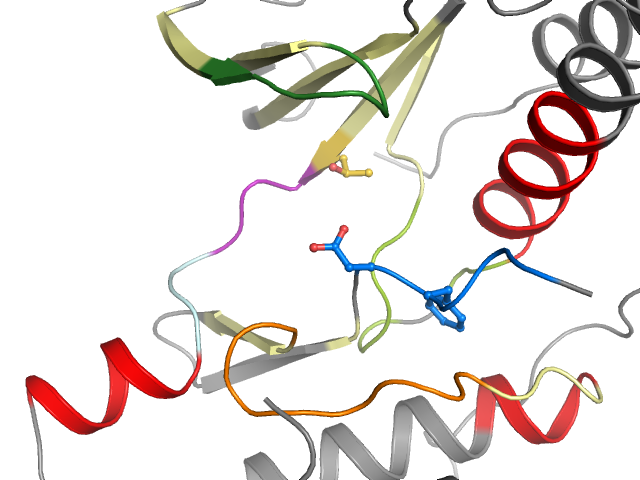

| Pocket alignment | |
| Uniprot sequence: | SPVGSGAYGSVCAVAVKKLRTYRELRLLKHMKENVIGLLDVYLVTHLMG-ADLNNIVKCYIHSADIIHRDLKPSNLAVILDFGLA |
| Sequence structure: | SPVGSGAYGSVCAVAVKKLRTYRELRLLKHMKENVIGLLDVYLVTHLMG_ADLNNIVKCYIHSADIIHRDLKPSNLAVILDFGLA |
