PDB-code
| Kinase structure | |
| Kinase: | PRKACA (PKACa) |
| Family: | PKA |
| Group: | AGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1476 |
| PDB: | 4AE6 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2012-04-18 |
| PubMed: | 22504716 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 4AE6 | |||||
| 4AE6 | Alternative model: | A | Chain: | B | |
| 4AE6 | Alternative model: | B | Chain: | A | |
| 4AE6 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 69.7° (20.5Å) |
| G-rich loop rotation: | 79.7° |
| Quality Score: | 8 |
| Resolution: | 2.1 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I4 | Ligand No | Protein Yes | ||

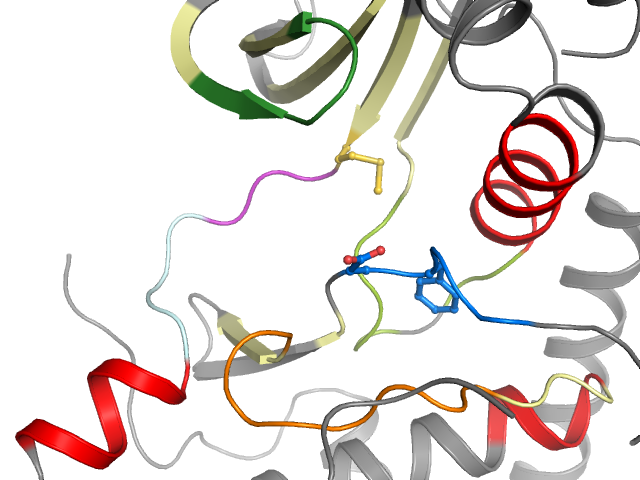

| Pocket alignment | |
| Uniprot sequence: | KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVPGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA |
| Sequence structure: | KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVPGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA |
