Protein kinase cAMP-activated catalytic subunit alpha
Kinase structure
Kinase:PRKACA (PKACa)
Family:PKA
Group:AGC
Species:HUMAN
IUPHAR/BPS ID:1476
PDB:4AE9
sc-PDB:
KIDFamMap:Search
Release date:2012-04-18
PubMed: 22504716
Chain:A
(Alternate) Model:B
Click to open a 3D viewer

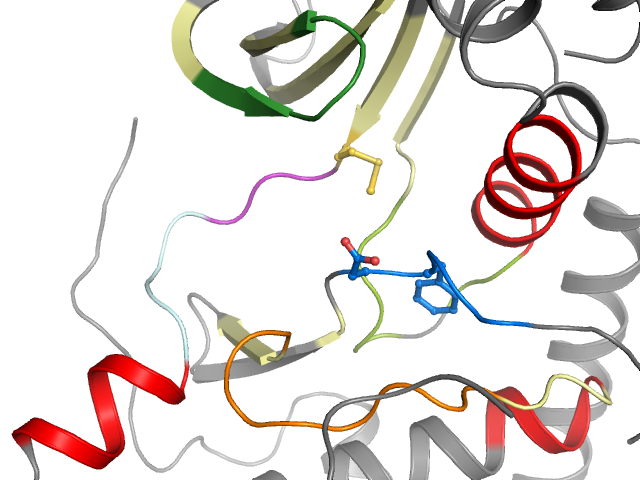

The orthosteric binding pocket


More entries for 4AE9
4AE9Alternative model: AChain: A
4AE9Alternative model: AChain: B
4AE9Alternative model: BChain: B


Structural information
DFG conformation:in
αC-helix conformation:in
G-rich loop angle (distance):70.3° (20.6Å)
G-rich loop rotation:80.6°
Quality Score:8
Resolution:2.3 Å
Missing Residues:0
Missing Atoms:0
Ligand binding mode
Waters
Cluster
I4
I6
Ligand
No
No
Protein
Yes
Yes

Pocket alignment
Uniprot sequence:KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVPGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA
Sequence structure:KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVPGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA
