PDB-code
| Kinase structure | |
| Kinase: | Map3k14 (NIK) |
| Family: | STE-Unique |
| Group: | STE |
| Species: | MOUSE |
| PDB: | 4G3C |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2012-08-08 |
| PubMed: | 22921830 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 4G3C | |||||
| 4G3C | Alternative model: | A | Chain: | B | |
| 4G3C | Alternative model: | B | Chain: | A | |
| 4G3C | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 51° (14.7Å) |
| G-rich loop rotation: | 113.1° |
| Quality Score: | 8 |
| Resolution: | 2.15 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I4 I5 I8 I11 | Ligand No No No No | Protein Yes No Yes No | ||

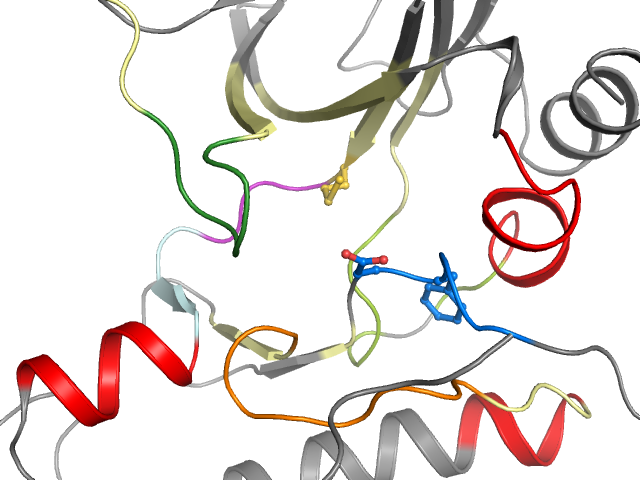

| Pocket alignment | |
| Uniprot sequence: | PRVGRGSFGEVHRCAVKKVFRVEELVACAGLSPRIVPLYGANIFMELLEGGSLGQLIKQYLHTRRILHGDVKADNVLLLCDFGHA |
| Sequence structure: | PRVGRGSFGEVHRCAVKKVFRVEELVACAGLSPRIVPLYGANIFMELLEGGSLGQLIKQYLHTRRILHGDVKADNVLLLCDFGHA |
