PDB-code
| Kinase structure | |
| Kinase: | INSR |
| Family: | InsR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1800 |
| PDB: | 2B4S |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2005-11-15 |
| PubMed: | 16271887 |
| Chain: | D |
| More entries for 2B4S | |||
| 2B4S | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 50.3° (15.1Å) |
| G-rich loop rotation: | 81.9° |
| Quality Score: | 8 |
| Resolution: | 2.3 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

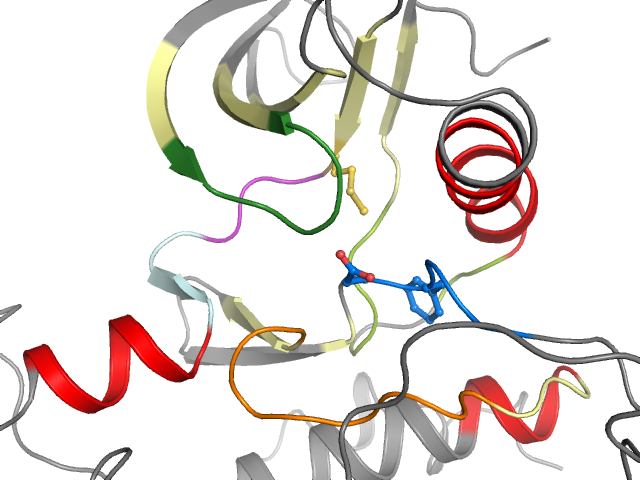

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I8 | Ligand No | Protein No | ||
| Pocket alignment | |
| Uniprot sequence: | RELGQGSFGMVYEVAVKTVEFLNEASVMKGFT-HVVRLLGVLVVMELMAHGDLKSYLRSYLNAKKFVHRDLAARNCMVIGDFGMT |
| Sequence structure: | RELGQGSFGMVYEVAVKTVEFLNEASVMKGFT_HVVRLLGVLVVMELMAHGDLKSYLRSYLNAKKFVHRDLAARNCMVIGDFGMT |
