PDB-code
| Kinase structure | |
| Kinase: | Mapk14 (p38a) |
| Family: | MAPK |
| Group: | CMGC |
| Species: | MOUSE |
| PDB: | 3P4K |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2011-01-05 |
| PubMed: | 21134636 |
| Chain: | A |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 67.2° (19.3Å) |
| G-rich loop rotation: | 42.4° |
| Quality Score: | 8 |
| Resolution: | 2.3 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

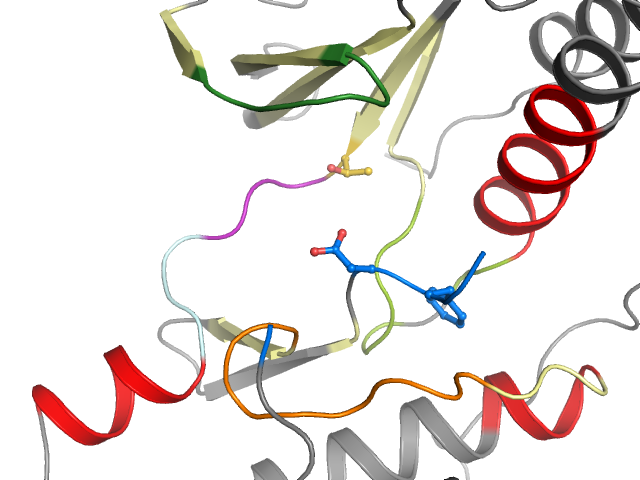

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I2 I3 I4 I5 | Ligand No No No No | Protein Yes Yes Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | SPVGSGAYGSVCAVAVKKLRTYRELRLLKHMKENVIGLLDVYLVTHLMG-ADLNNIVKCYIHSADIIHRDLKPSNLAVILDFGLA |
| Sequence structure: | APVGSGAYGSVCAVAVKKLRTYRELRLLKHMKENVIGLLDVYLVTHLMG_ADLNNIVKCYIHSADIIHRDLKPSNLAVILDFGLA |
