PDB-code
| Kinase structure | |
| Kinase: | HASPIN (Haspin) |
| Family: | Haspin |
| Group: | Other |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2028 |
| PDB: | 5HTC |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2016-03-16 |
| PubMed: | 27139824 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 5HTC | |||||
| 5HTC | Alternative model: | A | Chain: | A | |
| 5HTC | Alternative model: | C | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 53.3° (16.1Å) |
| G-rich loop rotation: | 58.2° |
| Quality Score: | 9.4 |
| Resolution: | 1.5 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 6 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I4 I5 I7 I10 | Ligand No No No No No | Protein Yes Yes Yes No Yes | ||

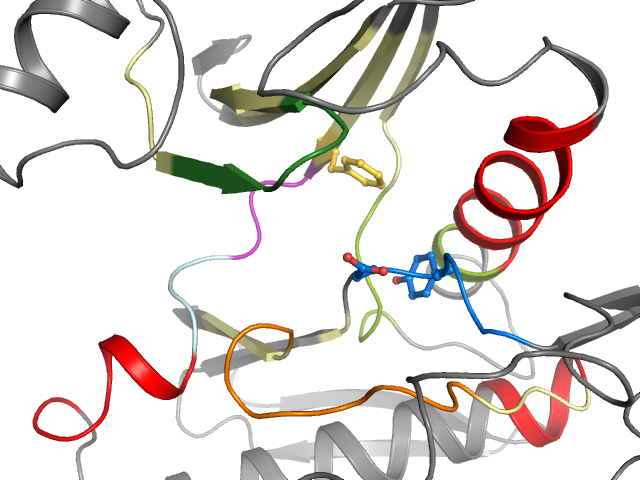

| Pocket alignment | |
| Uniprot sequence: | EKIGEGVFGEVFQVAIKIIEILPEIIISKELSEGFIGLNSVVLEFEFGG-IDLEQMRTKAEASLRFEHRDLHWGNVLLIIDYTLS |
| Sequence structure: | EKIGEGVFGEVFQVAIKIIEILPEIIISKELSEGFIGLNSVVLEFEFGG_IDLEQMRTKAEASLRFEHRDLHWGNVLLIIDYTLS |
