PDB-code
| Kinase structure | |
| Kinase: | MAPK8 (JNK1) |
| Family: | MAPK |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1496 |
| PDB: | 4YR8 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2016-03-16 |
| PubMed: | 26988444 |
| Chain: | C |
| (Alternate) Model: | B |
| More entries for 4YR8 | |||||
| 4YR8 | Alternative model: | A | Chain: | A | |
| 4YR8 | Alternative model: | A | Chain: | C | |
| 4YR8 | Alternative model: | A | Chain: | E | |
| 4YR8 | Alternative model: | A | Chain: | F | |
| 4YR8 | Alternative model: | B | Chain: | A | |
| 4YR8 | Alternative model: | B | Chain: | E | |
| 4YR8 | Alternative model: | B | Chain: | F | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | - |
| G-rich loop rotation: | - |
| Quality Score: | 5.2 |
| Resolution: | 2.4 Å |
| Missing Residues: | 7 |
| Missing Atoms: | 0 |

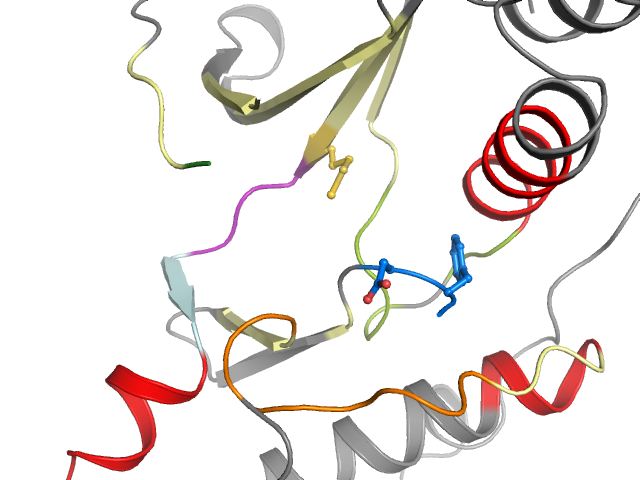

| Pocket alignment | |
| Uniprot sequence: | KPIGSGAQGIVCAVAIKKLRAYRELVLMKCVNKNIIGLLNVYIVMELMD-ANLCQVIQMHLHSAGIIHRDLKPSNIVVILDFGLA |
| Sequence structure: | KPIG_____IVCAVAIKKLRAYRELVLMKCVNKNIIGLLNVYIVMELMD_ANLCQVIQMHLHSAGIIHRDLKPSNIVVILDFG__ |
