PDB-code
| Kinase structure | |
| Kinase: | HASPIN (Haspin) |
| Family: | Haspin |
| Group: | Other |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2028 |
| PDB: | 5HTB |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2016-05-11 |
| PubMed: | 27139824 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 5HTB | |||||
| 5HTB | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 52.3° (15.8Å) |
| G-rich loop rotation: | 52.9° |
| Quality Score: | 8 |
| Resolution: | 1.7 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

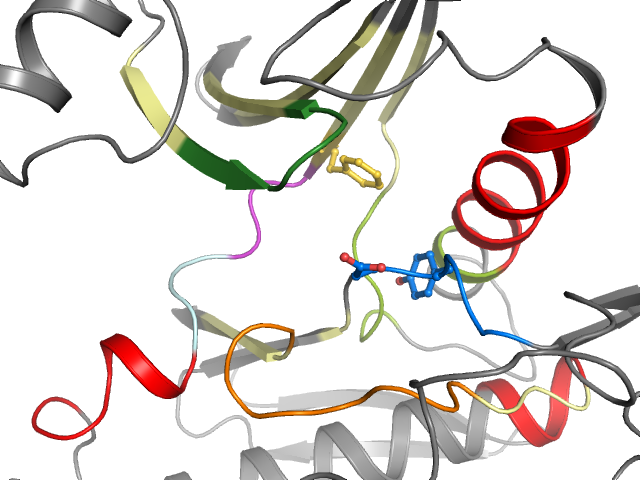

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I4 I5 I7 I10 | Ligand No No No No No | Protein Yes Yes Yes No Yes | ||
| Pocket alignment | |
| Uniprot sequence: | EKIGEGVFGEVFQVAIKIIEILPEIIISKELSEGFIGLNSVVLEFEFGG-IDLEQMRTKAEASLRFEHRDLHWGNVLLIIDYTLS |
| Sequence structure: | EKIGEGVFGEVFQVAIKIIEILPEIIISKELSEGFIGLNSVVLEFEFGG_IDLEQMRTKAEASLRFEHRDLHWGNVLLIIDYTLS |
