Version: 3.2
Updated: 24-Dec-2025
Protein kinase cAMP-activated catalytic subunit alpha
Kinase structure
Kinase:PRKACA (PKACa)
Family:PKA
Group:AGC
Species:HUMAN
IUPHAR/BPS ID:1476
PDB:5IZF
sc-PDB:
KIDFamMap:Search
Release date:2016-07-20
PubMed: 27389935
Chain:A
Click to open a 3D viewer

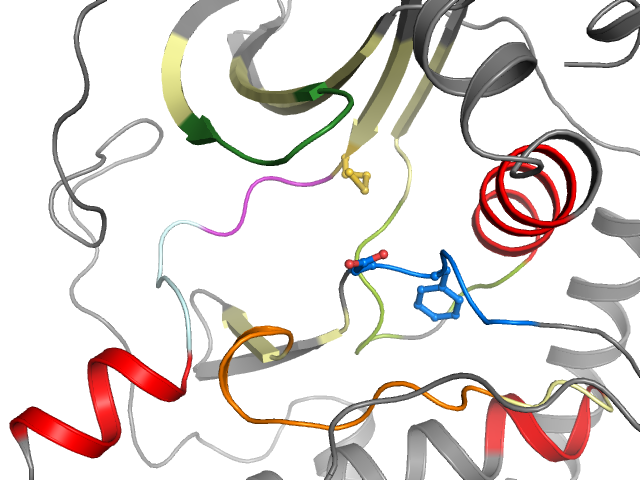

The orthosteric binding pocket
Structural information
DFG conformation:in
αC-helix conformation:in
G-rich loop angle (distance):57.2° (17.7Å)
G-rich loop rotation:55°
Quality Score:8
Resolution:2.1 Å
Missing Residues:0
Missing Atoms:0
Ligand binding mode
Waters
Cluster
I1
Ligand
No
Protein
Yes

Pocket alignment
Uniprot sequence:KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVPGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA
Sequence structure:KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVPGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA
