PDB-code
| Kinase structure | |
| Kinase: | IRAK4 |
| Family: | IRAK |
| Group: | TKL |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2045 |
| PDB: | 5KX7 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2016-08-17 |
| PubMed: | 27476420 |
| Chain: | A |
| More entries for 5KX7 | |||
| 5KX7 | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 43.2° (13.4Å) |
| G-rich loop rotation: | 48.3° |
| Quality Score: | 4.4 |
| Resolution: | 2.8 Å |
| Missing Residues: | 8 |
| Missing Atoms: | 0 |

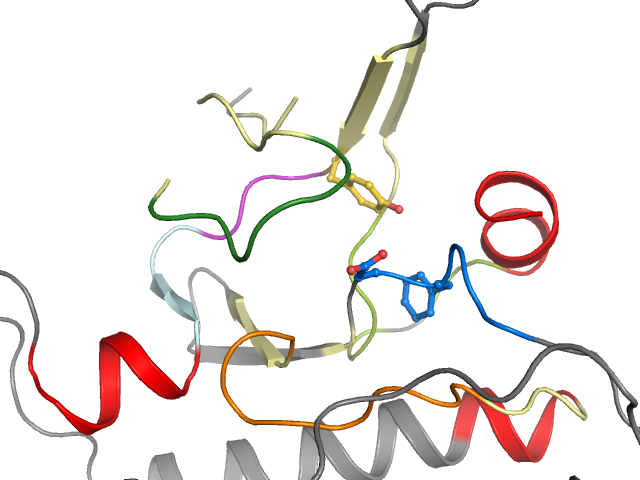

| Pocket alignment | |
| Uniprot sequence: | NKMGEGGFGVVYKVAVKKLQFDQEIKVMAKCQENLVELLGFCLVYVYMPNGSLLDRLSCFLHENHHIHRDIKSANILLISDFGLA |
| Sequence structure: | __MGEGGFGVVYKVAV______QEIKVMAKCQENLVELLGFCLVYVYMPNGSLLDRLSCFLHENHHIHRDIKSANILLISDFGLA |
