PDB-code
| Kinase structure | |
| Kinase: | MAP2K7 |
| Family: | STE7 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2068 |
| PDB: | 5Y8U |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2017-10-11 |
| PubMed: | 28890347 |
| Chain: | A |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | na |
| G-rich loop angle (distance): | 50.5° (14.8Å) |
| G-rich loop rotation: | 116.9° |
| Quality Score: | 6 |
| Resolution: | 2.92 Å |
| Missing Residues: | 5 |
| Missing Atoms: | 0 |

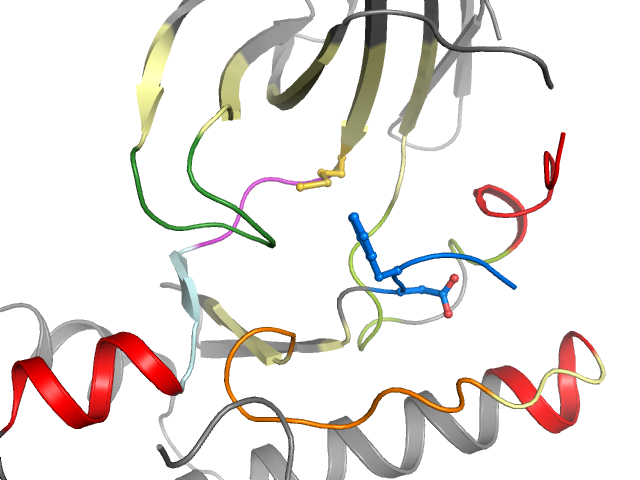

| Pocket alignment | |
| Uniprot sequence: | GEMGSGTCGQVWKIAVKQMRILMDLDVVLKSHPYIVQCFGTFIAMELMGTCAEKLKKRMLKEKHGVIHRDVKPSNILLLCDFGIS |
| Sequence structure: | GEMGSGTCGQVWKIAVKQM____DLDVVLKSHPYIVQCFGTFIAMELMGTCAEKLKKRMLKEKHGVIHRDVKPSNILLLSDFGI_ |
