PDB-code
| Kinase structure | |
| Kinase: | PIK3C3 |
| Family: | PIK |
| Group: | Atypical |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2152 |
| PDB: | 3LS8 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2010-03-23 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 3LS8 | |||||
| 3LS8 | Alternative model: | A | Chain: | B | |
| 3LS8 | Alternative model: | B | Chain: | A | |
| 3LS8 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 63.1° (19.1Å) |
| G-rich loop rotation: | 74.1° |
| Quality Score: | 7.6 |
| Resolution: | 2.25 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

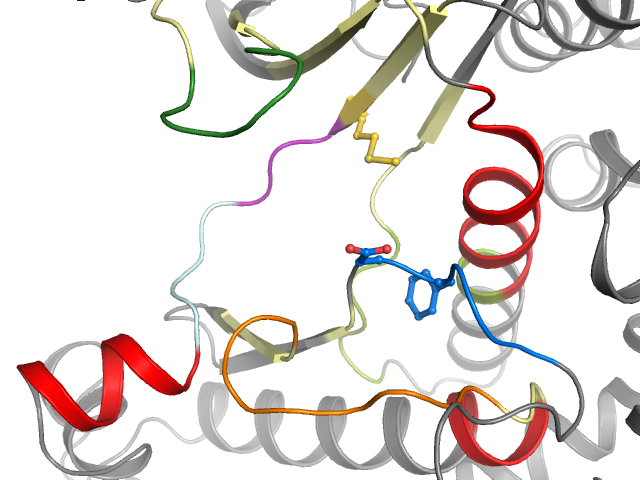

| Pocket alignment | |
| Uniprot sequence: | ATLFKSALMPAQLVIFKHGDLRQDQLILQIISLKLTPYKVLHGFMQFIQSVPVAEVLDTITYI--LGVGDRHLDNLLLHIDFGYI |
| Sequence structure: | ATLFKSALMPAQLVIFKHGDLRQDQLILQIISLKLTPYKVLHGFMQFIQSVPVAEVLDTITYI__LGVGDRHLDNLLLHIDFGYI |
