PDB-code
| Kinase structure | |
| Kinase: | PIK3C3 |
| Family: | PIK |
| Group: | Atypical |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2152 |
| PDB: | 4UWK |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2014-11-26 |
| PubMed: | 25402320 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 4UWK | |||||
| 4UWK | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 63.8° (19.3Å) |
| G-rich loop rotation: | 71.9° |
| Quality Score: | 7.6 |
| Resolution: | 2.83 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

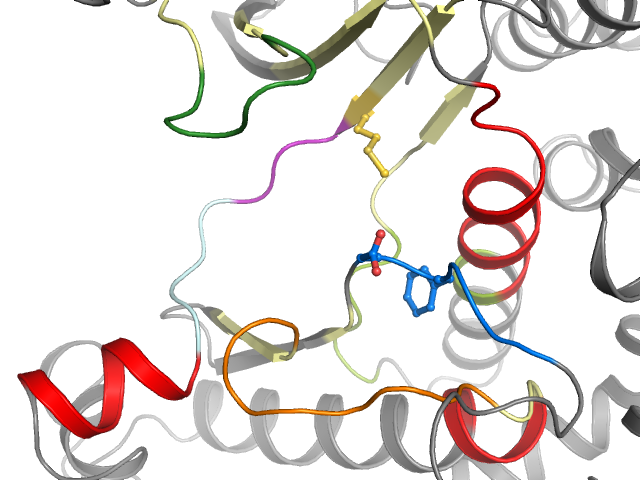

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I5 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | ATLFKSALMPAQLVIFKHGDLRQDQLILQIISLKLTPYKVLHGFMQFIQSVPVAEVLDTITYI--LGVGDRHLDNLLLHIDFGYI |
| Sequence structure: | ATLFKSALMPAQLVIFKHGDLRQDQLILQIISLKLTPYKVLHGFMQFIQSVPVAEVLDTITYI__LGVGDRHLDNLLLHIDFGYI |
