PDB-code
| Kinase structure | |
| Kinase: | ACVR1 (ALK2) |
| Family: | STKR |
| Group: | TKL |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1785 |
| PDB: | 3Q4U |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2011-02-09 |
| PubMed: | 23646137 |
| Chain: | B |
| (Alternate) Model: | A |
| Orthosteric ligand: | LDN |
 | |
| More entries for 3Q4U | |||||
| 3Q4U | Alternative model: | A | Chain: | A | |
| 3Q4U | Alternative model: | A | Chain: | C | |
| 3Q4U | Alternative model: | A | Chain: | D | |
| 3Q4U | Alternative model: | B | Chain: | A | |
| 3Q4U | Alternative model: | B | Chain: | B | |
| 3Q4U | Alternative model: | B | Chain: | C | |
| 3Q4U | Alternative model: | B | Chain: | D | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 47.9° (14.4Å) |
| G-rich loop rotation: | 76.3° |
| Quality Score: | 8 |
| Resolution: | 1.82 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

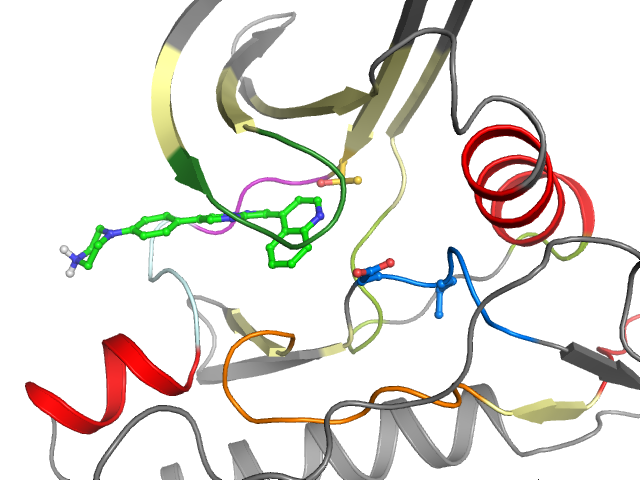

| Ligand binding mode | ||||
| Pockets | Subpockets | Waters | ||
| front | FP-I | Cluster I1 I2 I5 | Ligand No No No | Protein Yes Yes Yes |
| Pocket alignment | |
| Uniprot sequence: | ECVGKGRYGEVWRVAVKIFSWFRETELYNTVMENILGFIASWLITHYHEMGSLYDYLQLTQGKPAIAHRDLKSKNILVIADLGLA |
| Sequence structure: | ECVGKGRYGEVWRVAVKIFSWFRETELYNTVMENILGFIASWLITHYHEMGSLYDYLQLTQGKPAIAHRDLKSKNILVIADLGLA |
| Ligand affinity | |
| ChEMBL ID: | CHEMBL513147 |
| Bioaffinities: | 19 records for 11 kinases |
| Species | Kinase (ChEMBL naming) | Median | Min | Max | Type | Records |
|---|---|---|---|---|---|---|
| Homo sapiens | Activin receptor type-1 | 7.8 | 7.4 | 8.5 | pIC50 | 3 |
| Mus musculus | Activin receptor type-1 | 7.9 | 7.9 | 7.9 | pEC50 | 1 |
| Homo sapiens | Activin receptor type-1B | 5.7 | 5.7 | 7.4 | pIC50 | 2 |
| Homo sapiens | AMP-activated protein kinase, beta-1 subunit | 6 | 6 | 6 | pIC50 | 1 |
| Homo sapiens | Bone morphogenetic protein receptor type-1A | 7.7 | 7.7 | 8.7 | pIC50 | 2 |
| Homo sapiens | Bone morphogenetic protein receptor type-1B | 7.2 | 7.2 | 9 | pIC50 | 2 |
| Homo sapiens | Bone morphogenetic protein receptor type-2 | 5.4 | 5.4 | 5.4 | pIC50 | 1 |
| Homo sapiens | Serine/threonine-protein kinase receptor R3 | 7.9 | 7.9 | 8 | pIC50 | 2 |
| Homo sapiens | TGF-beta receptor type I | 6.3 | 6.3 | 7.6 | pIC50 | 3 |
| Homo sapiens | TGF-beta receptor type II | 6.9 | 6.9 | 6.9 | pIC50 | 1 |
| Homo sapiens | Vascular endothelial growth factor receptor 2 | 6.7 | 6.7 | 6.7 | pIC50 | 1 |
Kinase-ligand interaction pattern
• Hydrophobic • Aromatic face-to-face • Aromatic face-to-edge • H-bond donor • H-bond acceptor • Ionic positive • Ionic negative
| I | g.l | II | III | αC | |||||||||||||||
| 1 E 212 | 2 C 213 | 3 V 214 | 4 G 215 | 5 K 216 | 6 G 217 | 7 R 218 | 8 Y 219 | 9 G 220 | 10 E 221 | 11 V 222 | 12 W 223 | 13 R 224 | 14 V 232 | 15 A 233 | 16 V 234 | 17 K 235 | 18 I 236 | 19 F 237 | 20 S 244 |
| • | • | • | • | ||||||||||||||||
| αC | b.l | IV | |||||||||||||||||
| 21 W 245 | 22 F 246 | 23 R 247 | 24 E 248 | 25 T 249 | 26 E 250 | 27 L 251 | 28 Y 252 | 29 N 253 | 30 T 254 | 31 V 255 | 32 M 256 | 33 E 260 | 34 N 261 | 35 I 262 | 36 L 263 | 37 G 264 | 38 F 265 | 39 I 266 | 40 A 267 |
| • | |||||||||||||||||||
| IV | V | GK | hinge | linker | αD | αE | |||||||||||||
| 41 S 268 | 42 W 280 | 43 L 281 | 44 I 282 | 45 T 283 | 46 H 284 | 47 Y 285 | 48 H 286 | 49 E 287 | 50 M 288 | 51 G 289 | 52 S 290 | 53 L 291 | 54 Y 292 | 55 D 293 | 56 Y 294 | 57 L 295 | 58 Q 296 | 59 L 297 | 60 T 326 |
| • | • | •• | •• | • | • | • | • | ||||||||||||
| αE | VI | c.l | VII | VIII | x | ||||||||||||||
| 61 Q 327 | 62 G 328 | 63 K 329 | 64 P 330 | 65 A 331 | 66 I 332 | 67 A 333 | 68 H 334 | 69 R 335 | 70 D 336 | 71 L 337 | 72 K 338 | 73 S 339 | 74 K 340 | 75 N 341 | 76 I 342 | 77 L 343 | 78 V 344 | 79 I 352 | 80 A 353 |
| • | • | • | |||||||||||||||||
| DFG | a.l | ||||||||||||||||||
| 81 D 354 | 82 L 355 | 83 G 356 | 84 L 357 | 85 A 358 | |||||||||||||||
| • | |||||||||||||||||||
Interaction pattern search
Search KLIFS for kinase-ligand complexes with similar interaction patterns:
